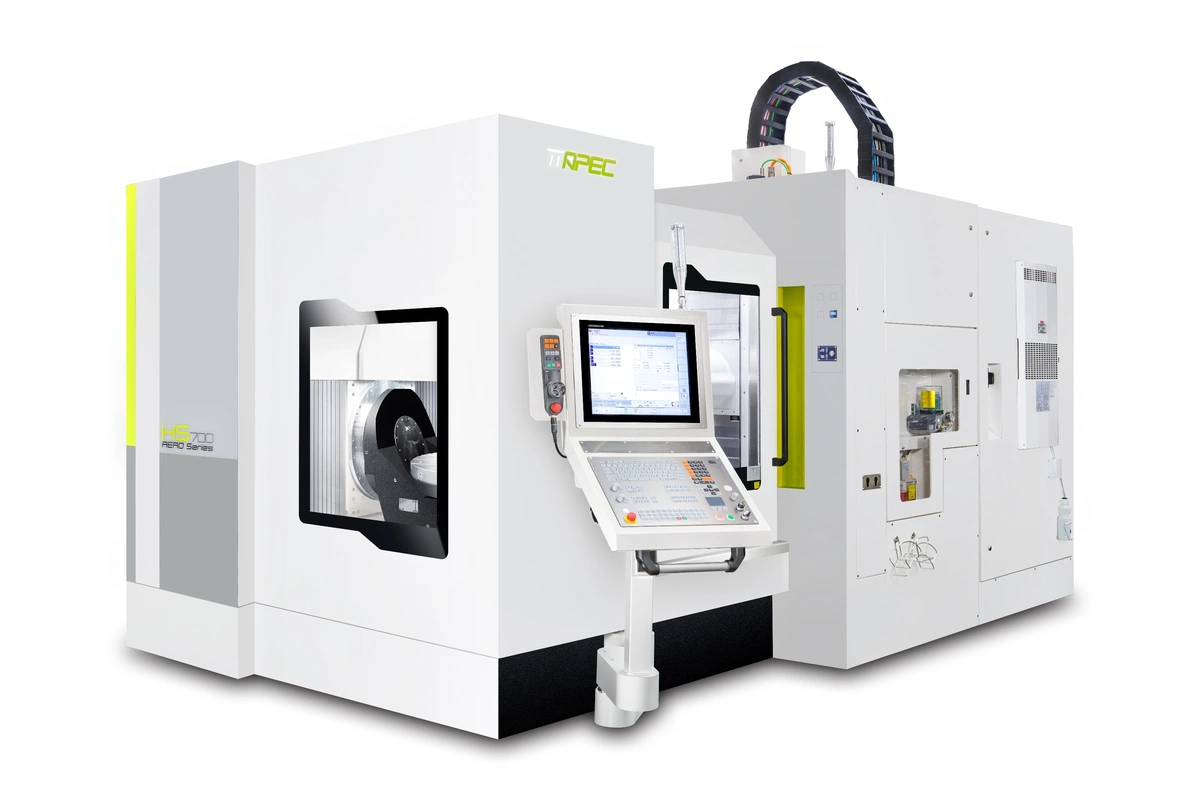

New - Build-To-Order APEC HS700 | 5-Axis Horizontal Machining Center
ConditionNew
0 available
New
The APEC HS700 series is specially designed to conquer aerospace SuperAlloy processing challenges. Discover the power of high rigidity T-shaped structure design and high-speed ball screw-driven X/Y/Z axes, setting new standards in precision machining.
The APEC HS700 series is tailored to excel in aerospace SuperAlloy processing, delivering unmatched performance and precision in every cut. Featuring an inverted dual V-shaped rib structure in the basement design, the APEC HS700 series achieves the best force flow path. The X-axis travel is fully supported, ensuring zero gravitational dropping and deformation, thus guaranteeing workpiece and surface machining accuracy.
SPECIFICATION HS700
X-axis 27.95″
Y-axis 35.83″
Z-axis 31.89″
Feedrate XYZ=196.85 ft/min
Table size ( Diameter ) Ø25.59″
Max. processing diameter Ø27.56″
Max. table load 771.62 lbs.
Max. rotation angle A=-90°~135° C=±360°
Max. rotation speed A=70 C=80 rpm
Torque (S1/Max.) A=1,574/2,789 ft. lbs. C=495/892 ft. lbs.
Spindle taper HSK63A
Spindle speed 20,000 rpm
Spindle power (S1/Max.) 26.82/32.18 hp
Spindle torque (S1/Max.) 33.51/40.56 ft. lbs.
Tool shank 32T pcs
Max. tool length 15.75″
Max. tool diameter with adjacent tool Ø2.95″
Max. tool diameter without adjacent tool Ø5.12″
