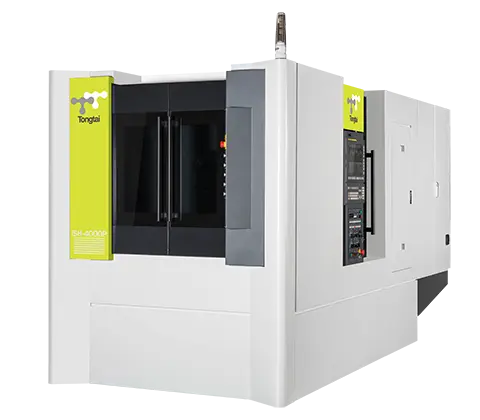

TONGTAI SH-4000P HORIZONTAL MACHINING CENTER
ConditionNew
1 available
New
The TONGTAI SH-4000P is a compact and high-performance horizontal machining center, specifically designed for aluminum machining and applications requiring smaller strokes. Its advanced 15,000 rpm built-in spindle delivers up to 37 kW of power with torque outputs of 95/171/250 Nm, ensuring exceptional cutting efficiency and precision. Ideal for industries focused on mass production and space optimization, this machine brings versatility and reliability to your operations.
Key Features:
• High-Speed Built-In Spindle: 15,000 rpm with up to 37 kW power and 250 Nm torque for superior cutting performance.
• Automatic Pallet Changer (APC) Option: Streamlines loading and unloading for improved cycle times and productivity.
• Rigid Machine Bed Design: 3-point support structure for easy leveling and long-term stability.
• Stepped X-Axis Guideways: Enhances structural rigidity while maintaining a lightweight, compact footprint.
• Optimized Width: Space-saving design perfect for mass production line planning.
PALLET: 400 X 400 MM
MAX. PART DIMENSION: 550 X H800 MM
X/Y/Z STROKE: 510 510 510 MM
X/Y/Z RAPID: 60/60/60 M/MIN
MAX. TOOL LENGTH: 300 MM
FANUC 0i-MFPLUS,10.4’’ WITH LCD SCREEN
15000 RPM BUILT-IN SPINDLE, CAT-40
SPINDLE MOTOR 37/26/18.5KW
60 TOOLS ATC MAGAZINE
SPINDLE COOLER
20 BAR COOLANT THROUGH SPINDLE
INTEGRATED CHIP CONVEYOR WITH TROLLEY
OIL SKIMMER
COOLANT GUN AND AIR GUN
