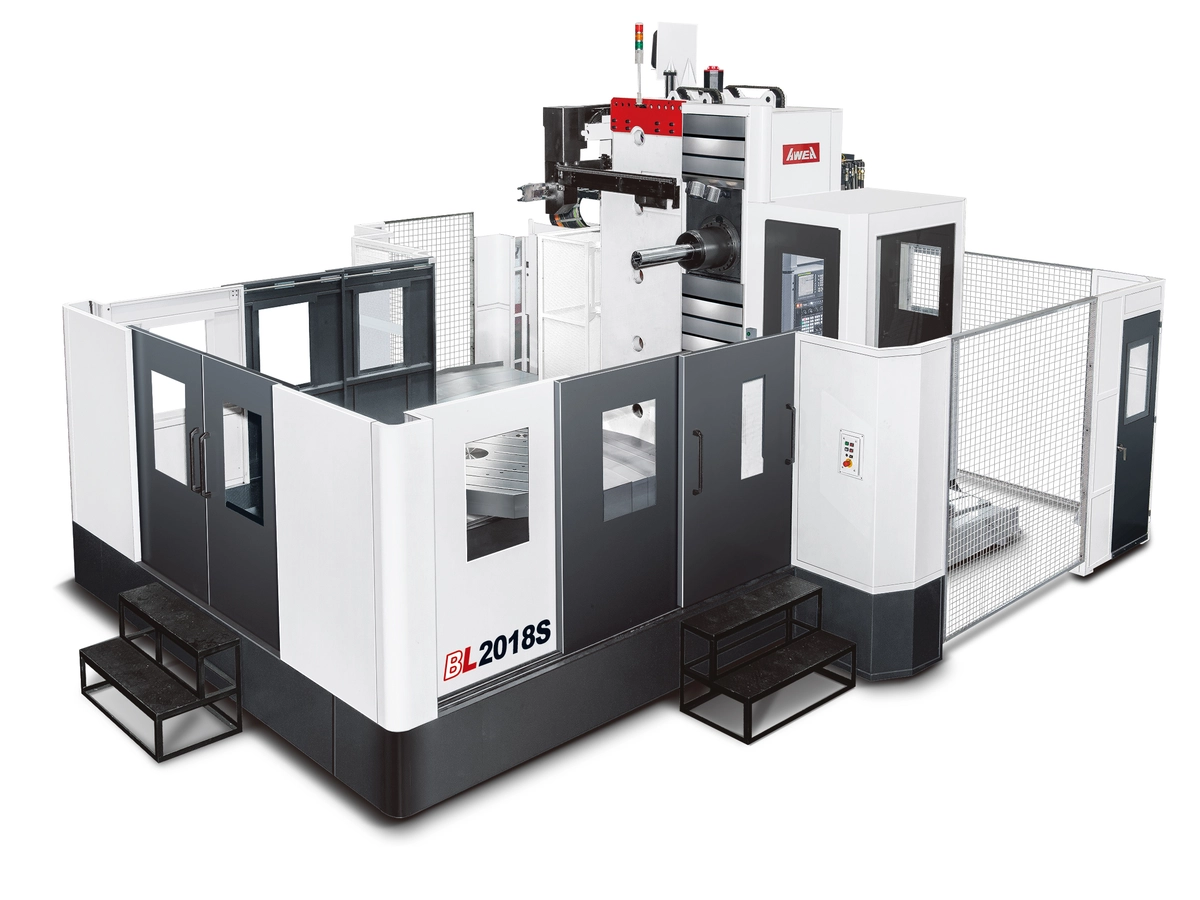

AWEA BL2018-S HORIZONTAL BORING MILLS

Description

AWEA BL-2018S: Precision and Heavy-Duty Performance for Modern Machining. The AWEA BL-2018S combines advanced technology, robust construction, and precision engineering to meet the most stringent requirements for deep hole boring and high-precision mold milling. Built with a high-rigidity structure and advanced assembly techniques, the BL-2018S ensures long-term accuracy and versatility for today’s complex manufacturing needs.

Key Features:

• Robust Structure: Designed with 3D CAD modeling, the column and bed deliver exceptional rigidity for demanding operations, ensuring durability and stability.
• Precision Ram System: 480 × 480 mm square-section spindle ram with 600 mm travel & Temperature-controlled spindle and four linear guideway pads for optimal accuracy.
• Heavy-Duty Machining Capability: The large carriage support and column dimensions ensure outstanding stability, with X-axis guideways spanning 1820 mm and Z-axis table carriage dimensions of 1440 mm × 1520 mm.
• Flexible Table Options: Offers indexing every 5° in 72 positions, continuous indexing, or fixed table configurations to suit various applications.
• Advanced Feed System: AC servo motor with precision gear transmission and ball screw mechanisms for high accuracy. Closed-loop feedback on all axes with linear scale encoders for enhanced control.
• Hydraulic Counterbalance System: Twin hydraulic cylinders provide symmetrical support, ensuring even weight distribution and accuracy in machining.
• Automatic Tool Change System: 40-tool magazine with random selection and flood coolant system for operator convenience and efficiency.
• Enhanced Chip Management: Standard dual screw-type chip collectors and a caterpillar-type chip conveyor for effective debris removal.
