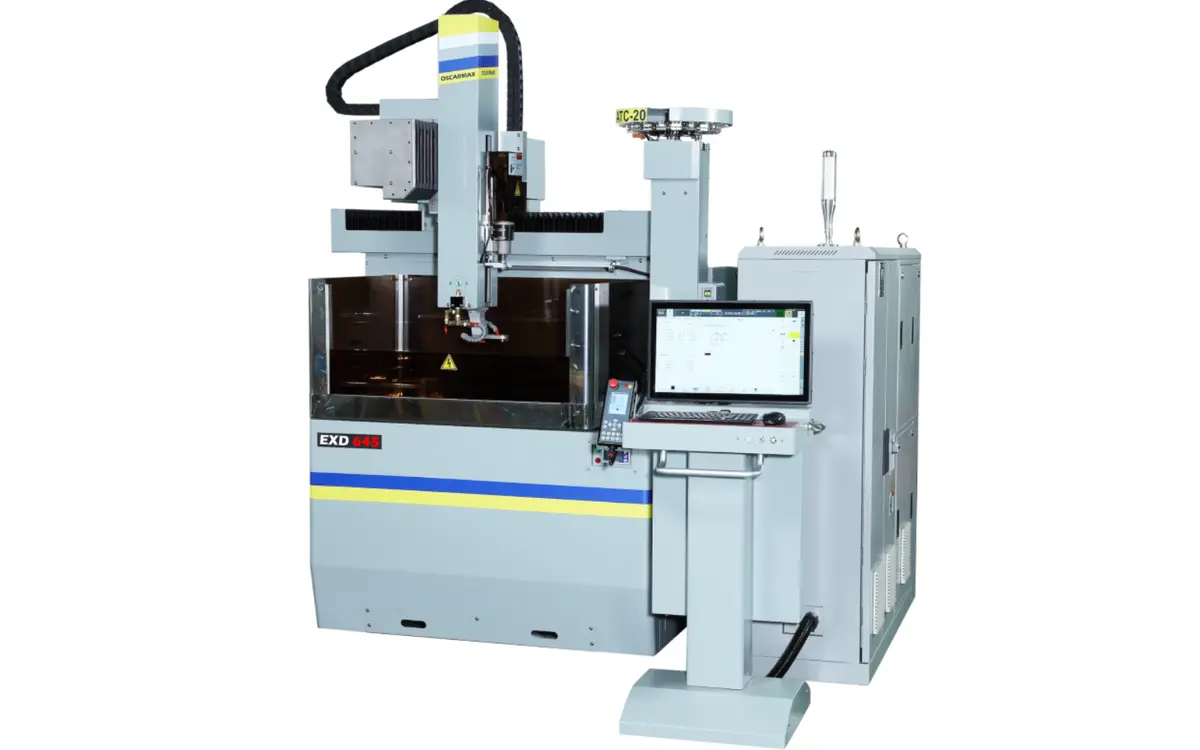

OSCARMAX EXD645 – High-Performance Micro-Drill EDM Machine
The OSCARMAX EXD645 is a precision micro-drill electrical discharge machining (EDM) system engineered for demanding micro-hole drilling and fine-feature machining in tool-making, mould fabrication, aerospace components, and medical device production. With a robust machine footprint and high-capacity work envelope, the EXD645 offers table travels of 600 mm (X-axis) × 400 mm (Y-axis) and a servo (W) axis travel of 500 mm, complemented by a guide (Z) travel of 500 mm.
It accommodates workpieces up to 870 × 750 mm (W × D) and supports up to 690 kg of load, making it well-suited for larger fixtures and complex parts. The machine includes a 650 × 450 mm table surface and weighs approximately 2,000 kg. On the power side, the generator unit supports a maximum working current of 120 A with overall power consumption of 10 kVA.
The dielectric system features a 120 L tank capacity with 10 µm filter density and dual filter elements for highest cleanliness standards. The control system boasts a 21.5-inch touch screen on a Windows 10 platform, offering real-time machine status through digital voltmeter, current meter and temperature sensors; it also supports up to 6-axis control (XYWZUV) with rotary table options for complex geometries.
With the EXD645, OSCARMAX delivers a combination of size, precision and smart-machine capability—ideal if your operations demand production-grade micro-hole drilling combined with broad part-handling capacity.
Key Features:
• Table travel: 600 mm (X) × 400 mm (Y); servo W-axis: 500 mm; guide (Z) travel: 500 mm.
• Maximum workpiece footprint: 870 × 750 mm (W × D); maximum workpiece weight: 690 kg.
• Table surface size: 650 × 450 mm; machine weight approx. 2,000 kg.
• Generator unit: max working current 120 A; overall power consumption 10 kVA.
• Dielectric tank capacity: 120 litres; filter density: 10 µm; 2 filter elements.
• User-friendly Windows 10-based 21.5″ touch-screen controller; supports 6-axis motion (XYWZUV) and remote diagnostics/IOT-capable.
• Designed specifically for micro drill EDM applications—fine feature creation, high stability, production-ready.
• Submersible tank(optional) produces better efficiency on through-hole job and its stability of work.
FILTER
STAINLESS WATER TANK (PLEASE REFER TO P.19 CIRCULATORY SYSTEM)
TOOLBOX
X/Y AXIS – 1μm LINEAR SCALE
ELECTRODE GUIDE Ø1.0MM
PRECISE ELECTRODE CHUCK 00.1~3.0MM
ELECTRODE TUBE 01.0MM
CORRECTION ROD Ø6MM, 3MM
LED WORK LAMP
PARALLEL SPACER
W AXIS DECODER
SIGNAL TOWER LIGHT
X/Y/Z AXIS DOUBLE NUTS PRECISE BALL SCREW
CNC FUNCTION:
1) EMPLOYS 32BITS IDUSTRIAL CONTROL SYSTEMS, 15" TOUCH SCREEN WINDOWS SYSTEM。
2) AUTOMATIC EDGE SEARCH, CENTER OF TWO PTS, HOLE CENTER, FIND CORNER, WORK AXIS ROTATION.。
3) G/M CODE PROGRAMMING AND 10000 BLOCKS OF WORKPIECE PROGRAM。
4) DXF FILE AND WIRE CUT PROGRAM TRANSFER。
5) WHEN MACHINING DOWN TO THE MAXIMUM DEEPNESS, THE ELECTRODE WILL DETECT AUTOMATICALLY AND RISE TO A
6) FIXED DISTANCE ABOVE THE SURFACE OF THE WORKPIECE。
7) 6.SIX AXES LINEAR INTERPOLATION AND ACCELERATION/DECELERATION MOTION。[OPTION : ROTARY TABLE]
8) METRIC AND IMPERIAL UNITS SETTING。
9) DIALOG PROGRAM EDIT FUNCTION OF RETANGULAR PATTERN, CIRCLE PATTERN, ETC。
10) CALLING MACH. SUB PROG WITH MAX. 8 LAYERS。
11) 10.WHEN THE ELECTRODE RUNS OUT DURING THE SINGLE HOLE/MUTI-HOLE MACHINING,THE TOTAL MACHINING DEEPNESS
12) WILL BE COMPENSATED AUTOMATICALLY AFTER CHANGING OF TOOL。
13) 11.MUTI-SET MACH. CRITERION DATABASE, EACH FOR STORAGE OF 100 MACH. CRITERIA FOR OPERATOR。
14) 12. AUTOMATICA ERROR DIAGNOSIS
