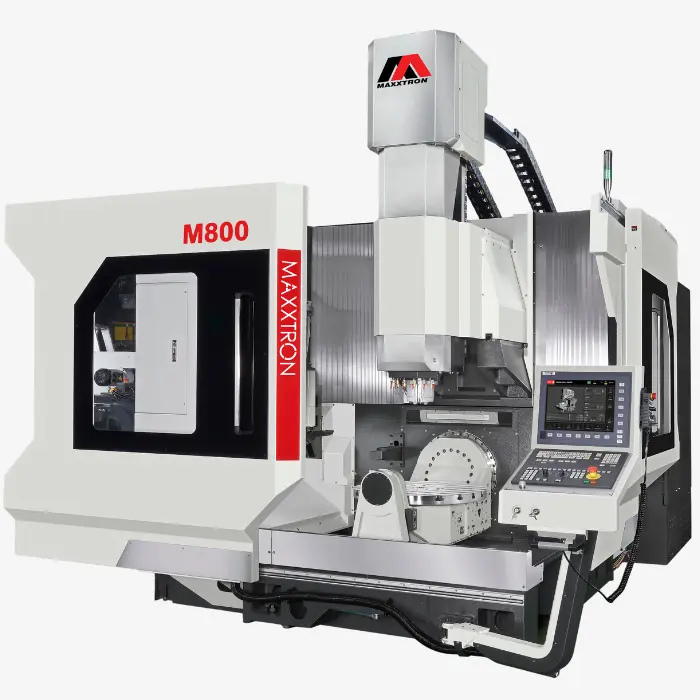

MAXXTRON M800 - 5-AXIS MACHINING CENTER
ConditionNew
New
The M800 5-Axis Machining Center combines cutting-edge technology and robust construction to deliver high-performance machining for complex applications. Designed with an advanced rigid structure, it ensures superior accuracy, stability, and efficiency for industries requiring top-tier precision. With high-speed capabilities and innovative features, the M800 stands as a reliable solution for modern manufacturing.
Key Features:
• Rigid Casting Base: Supports swiveling B/C axes with minimal deformation for precision under heavy loads.
• High-Speed Spindle Options: HSK-A63 spindles with speeds up to 24,000 rpm for rapid, precise operations.
• 5-Axis Rotary Table: Maintenance-free, zero-backlash design with speeds up to 50 rpm.
• Temperature Stability: Advanced cooling system maintains spindle temperature within ±0.1°C.
Perfect for demanding machining tasks, the M800 delivers a seamless blend of speed, precision, and durability.
CONTROLLER FAGOR 8065 ELITE W/ 15" SCREEN
15000 RPM DIRECT-DRIVEN SPINDLE, CAT40 BIG PLUS
32 TOOLS ATC MAGAZINE
CLAMPING TORQUE B/C: 8825/4903 Nm
SWIVELING ANGLE B/C: ±120° / 360°
MAX. SPEED B/C: 11.1/13.8 RPM
INDEXING PRECISION B/C: 45/15 ARC.SEC.
KINEMATICSOPT CALIBRATION
45° CALIBRATION BALL W/ MAGNETIC BASE
B/C AXIS ANGLE ENCODER X 2 PCS , FAGOR ACCURACY +/-5”
20 BARS COOLANT THROUGH SPINDLE SYSTEM
PAPER FILTER AND WATER TANK 200L
FULL ROOF ENCLOSURE SPLASH GUARD
FAGOR 3 AXIS LINEAR SCALE (XYZ)
SPINDLE COOLER
SPINDLE BLAST
CUTTING BLAST
CUTTING COOLANT SYSTEM
CENTRALIZED AUTO GREASE LUBRICATION SYSTEM (3 AXIS)
WORKING LAMP
INDICATION LAMP
ELECTRIC CABINET AIR CONDITIONER
HYDRAULIC SYTEM
STEEL BELT TYPE CHIP CONVEYOR AND CART
OIL SKIMMER
WASHING GUN AND AIR GUN
COOLANT FLUSHING SYSTEM (WASH DOWN SYSTEM)
LEVELING BLOKCS AND BOLTS
